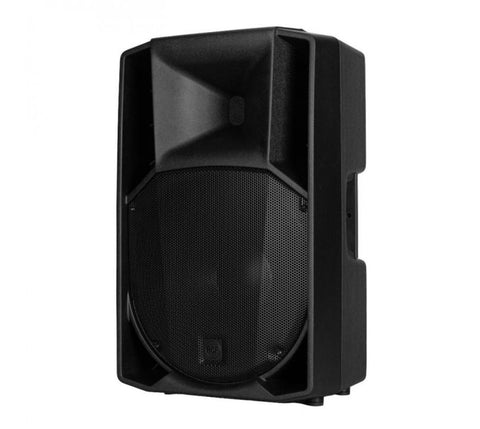

he RCF ART 715-A MK4 is an active 1400w 2-way speaker that is equipped with a 15-inch woofer and a 1-inch compression driver that has a brand new designed dome. This speaker offers an exceptional linear frequency response with excellent and precise low-frequency control.
RCF ART 710-A MK4 Key Features:
- 130 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 15" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
Applications:
- Compact live sound reinforcement
- Portable PA
- Frontfill and sidefill
- Auditorium, Clubs, Ballroom, Corporate AV, Theatre
RCF ART 710-A MK4 Technical Specifications:
- Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
- Max SPL: 130 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- Compression Driver: 1", 1.75" v.c.
- Woofer: 15", 2.5" v.c.
In/Outputs:
- Input signal: bal / unbal
- Input connectors: XLR-Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
Processor Section:
- Crossover frequencies: 1600 Hz
- Protections: Thermal, rms
- Limiter: Soft limiter
- Controls: Volume, Boost, Mic/Line
Amplifier Specifications:
- Total power: 1400 W PEAK
- High frequencies: 400 W PEAK
- Low frequencies: 1000 W PEAK
- Total power: 700 W RMS
- High frequencies: 200 W RMS
- Low frequencies: 500 W RMS
- Cooling: Convection / forced
- Connections: VDE connector in
Cabinet:
- Cabinet Material: Composite PP
- Hardware: 2xM10 flying p.
- Handles: 2 side, 1 top
- Pole Mount/Cap: Yes
- Colour: Black
Dimensions:
- Height: 708mm
- Width: 437mm
- Depth: 389mm
- Net Weight: 19.6kg
